Homelab
what started as a flat network on spare hardware is now VLAN-segmented, DNS is mid-migration to a proper resolver, and storage is next.
🔐 Networking
| Device | Specs | Role |
|---|---|---|
| Topton Intel N150 | 16GB / 256GB NVMe | OPNsense |
| TP-Link LS1008G | — | 8-Port Switch |
| TP-Link LS108GP | — | 8-Port PoE |
| TP-Link VR2100v | — | Access Point |
| 2x Eero 6 | — | Mesh AP |
🧠 Compute
| Device | Specs | Stack | Env |
|---|---|---|---|
| MacBook Air (2014) | 4GB / 128GB | CachyOS | DEV |
| Lenovo M910q Tiny | 8GB / 256GB | Windows, bare metal — *Arr stack | PROD |
| HP EliteDesk 800 G5 mini | — | Windows, bare metal — Plex + Jellyfin, SMB share | PROD |
| HP EliteDesk 400 G3 | 16GB / 256GB | Proxmox VE — self-hosted app stack | PROD |
| HP ProDesk 400 G4 SFF | 8GB / 256GB | Proxmox VE | PROD |
| Raspberry Pi 4B | 8GB | Pi-hole — fallback DNS (Bare Metal) | PROD |
| 2x HP EliteDesk SFF mini | — | Proxmox, pre-installed | BLOCKED |
*Arr Stack: Radarr, Sonarr, Lidarr, Bazarr, Prowlarr, qBittorrent, Tautulli, ProtonVPN
Self-hosted app stack (HP EliteDesk 400 G3, Proxmox LXCs): Home Assistant, Homarr, Docmost, Vaultwarden, Homer, Tautulli, Homepage, Seerr (Plex/Jellyfin request manager, tailnet-only access), Technitium DNS (primary resolver)
no k3s/Kubernetes anywhere currently — an earlier version of this page said otherwise, that was wrong.

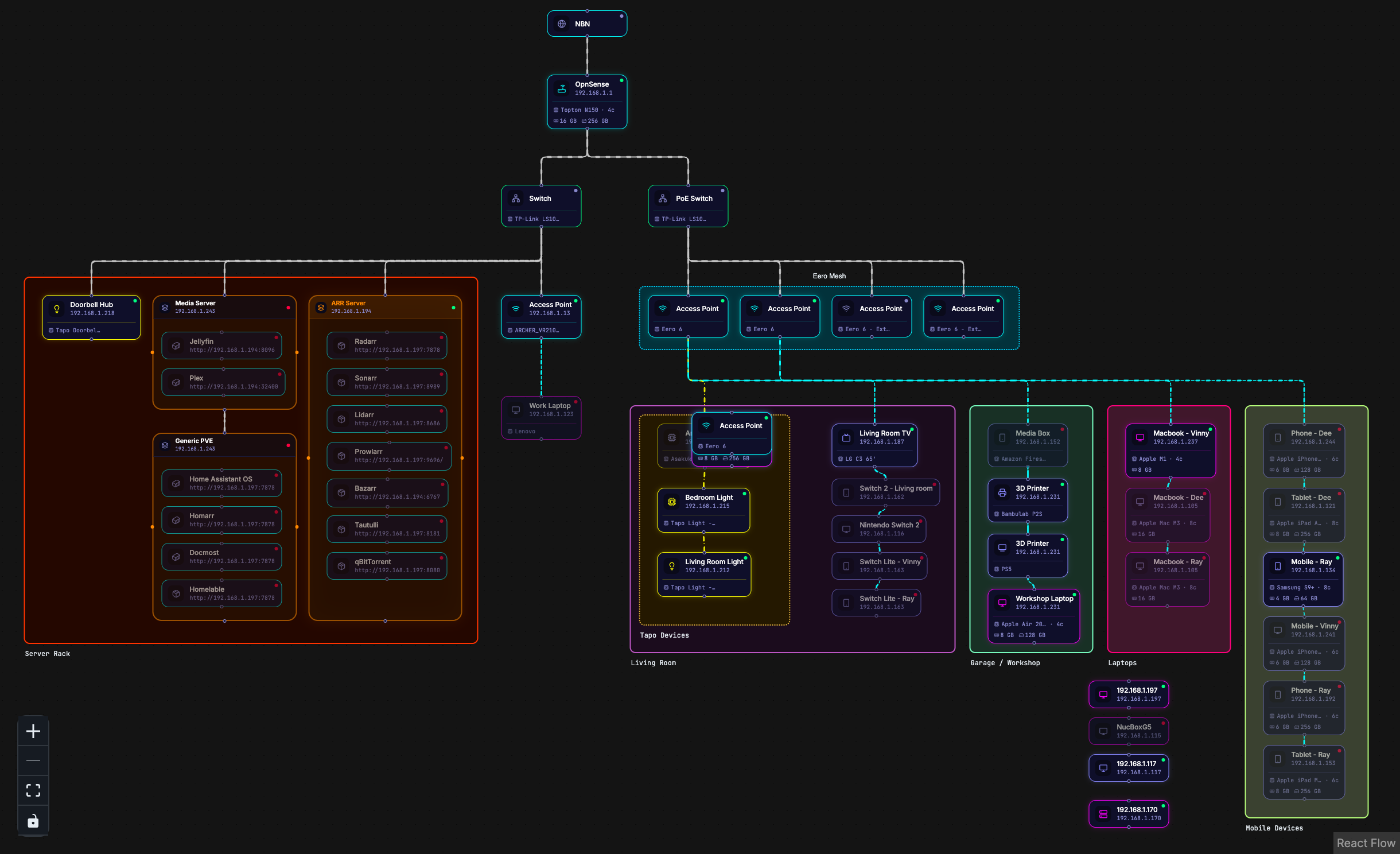

🌐 Network Diagram
